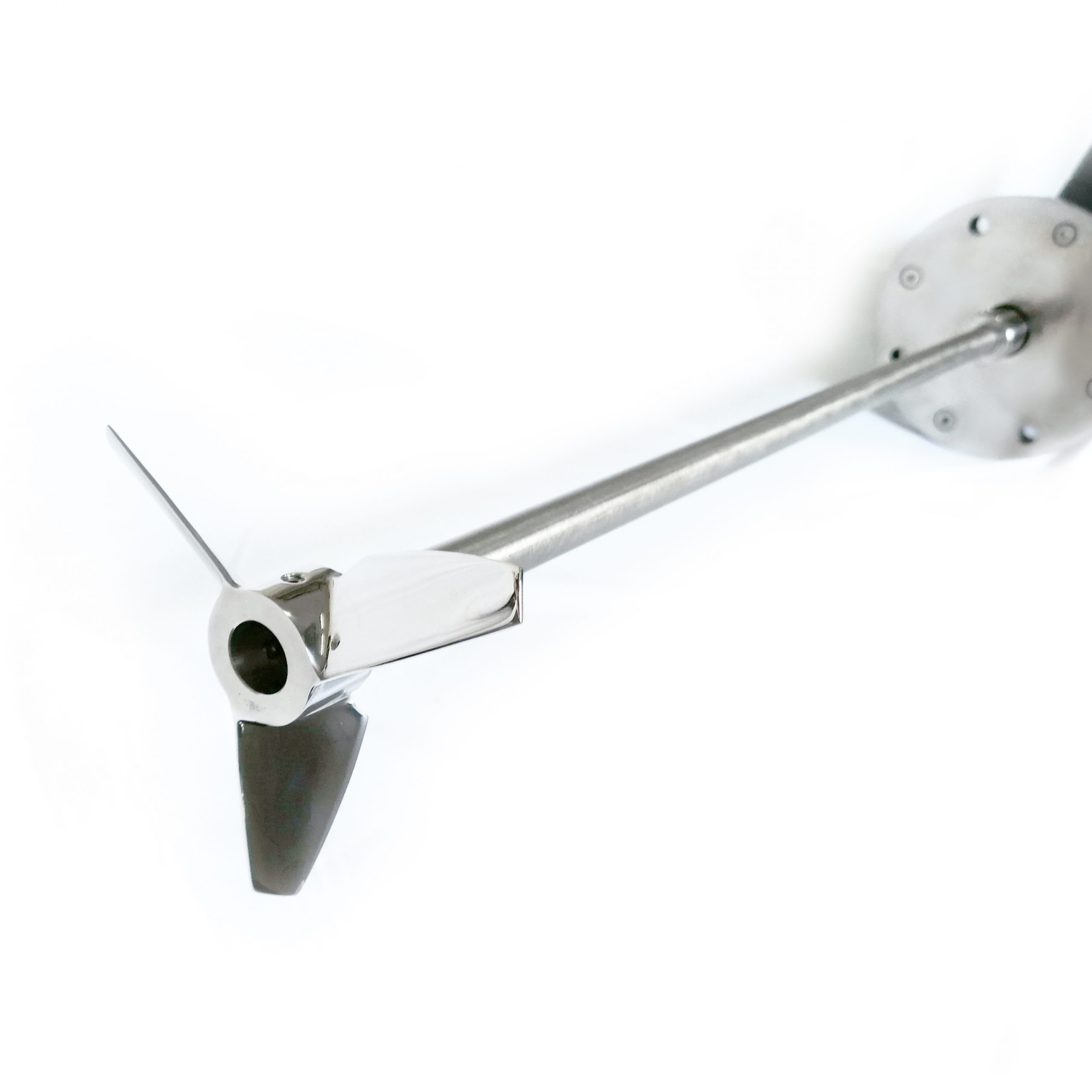

Vertical Mixer FAV
These mixers are used in the mixing, dissolving, and dispersing processes whenever powerful and high-speed agitation is required in the food processing, cosmetics, pharmaceutical, or chemical industries.
Operating Principle
These mixers are installed centrally in the tank using a flange.
The rotation of the blades creates a fluid movement towards the bottom of the tank and upwards to the surface opposite the position of the mixer.
This creates a homogeneous mixture, which is further enhanced if the tank has a dished bottom.
Materials
- Product-contacting parts: AISI 316L
- Mechanical seals: Nbr
- Bearing support: Aluminum
Design and Functionality:
- Vertical agitator
- Sealing: V-ring seals
- Motor IEC B14, 1500 rpm, IP55, class F insulation
- Maximum power 0.75 kW
