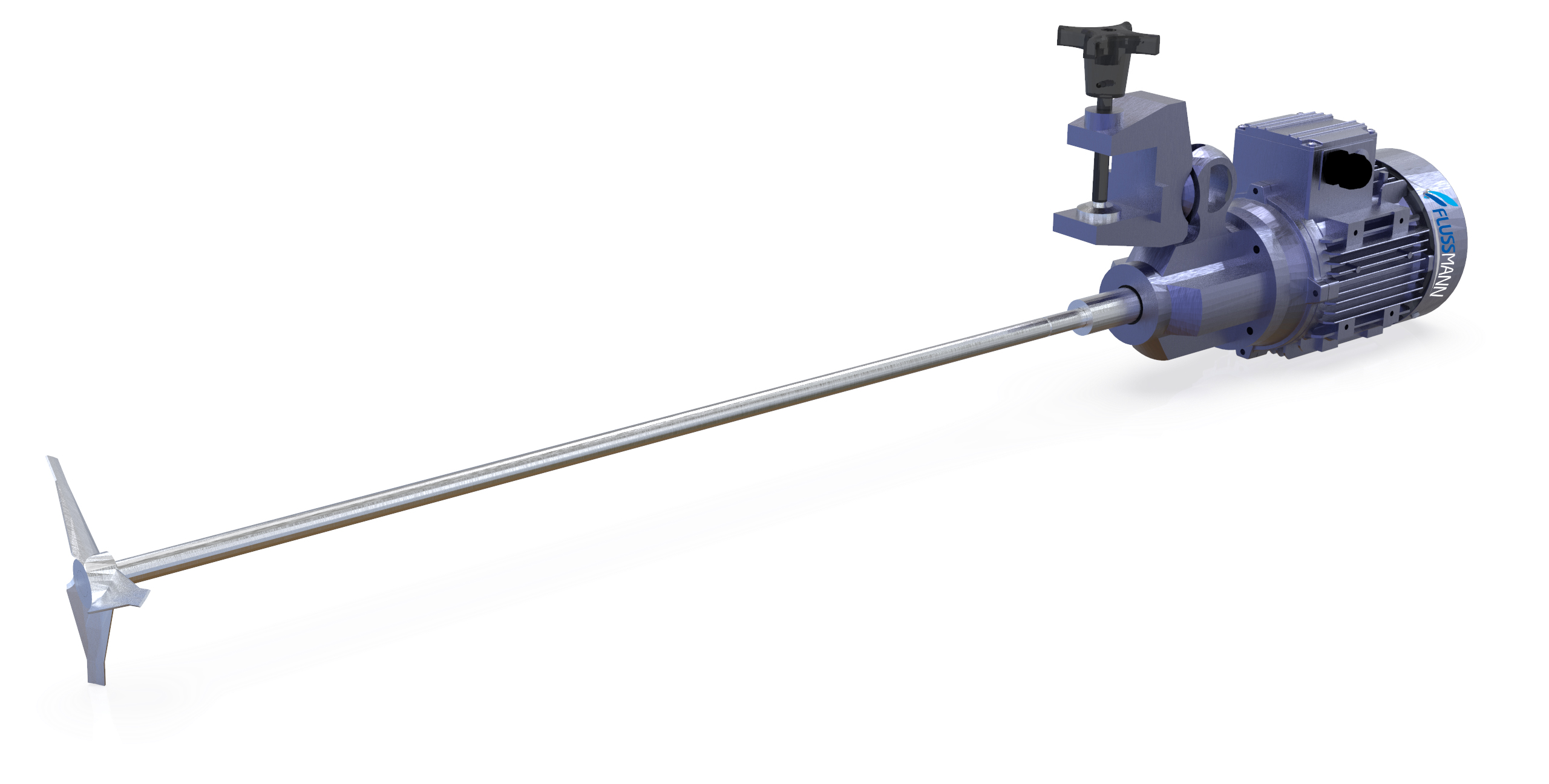

Portable FAP Agitators

The FAP series agitators are vertical clamp agitators. They can be used in mixing, dissolution, and dispersion processes whenever powerful and high-speed agitation is required in the food, cosmetics, pharmaceutical, or chemical industries.

Operating Principle

These agitators are mounted on the wall of the tank using a clamping system.

With the help of an articulation, they can be tilted to reach the desired position.

The rotation of the blades creates a fluid movement towards the bottom of the tank, which then rises to the surface opposite to the position of the agitator.

This creates a homogeneous mixture, and it is enhanced if the tank has a dished bottom.

Materials

  • Parts in contact with the product: AISI 316L
  • Mechanical seals: Nbr
  • Bearing support: Aluminum



Design and Functionality:

  • Agitator with clamping system
  • Support on a rotating shaft
  • IEC B14 motor, 1500 rpm, IP55, insulation class F
  • Maximum power 0.75 kW
  • Lineflux propeller
